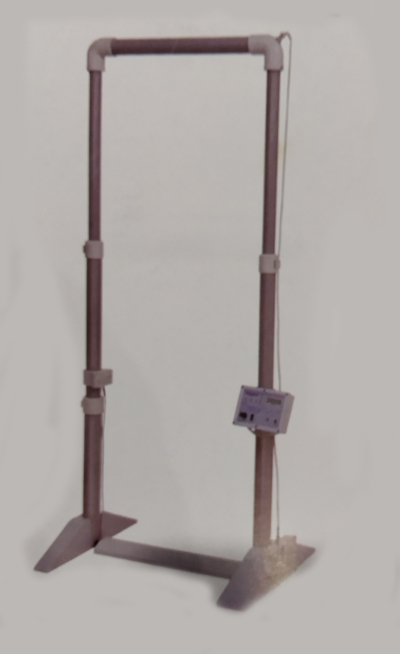

    GT-7

  • Walk Through Metal Detector detects a pistol even when concealed withferrite rods in all six possible orientations.
  • Two or more Walk Through Metal Detectors can operate at the same time and close together
  • Counter six digit counter for automatic counting.
  • Separate LED indicator for Ferrite detection.
  • LCD Display
  • Membarane Touch Switches
  • Autosetting
  • Control unit on the side of PVC pipe frame.
  • Micro processor based technology.
  • IR Sensors to avoid alarm indication for metal movement outside the frame.
  • Counter – six digit counter for counting automatically the number of persons passing through the portable walk Through Metal Detector.
  • Detects ferrous & non- ferrous metals even concealed in ferrite. Search coil housed in telescopic extendable PVC frame with wooden side supports.
  • Carrying case for easy transportation.
  • LED bar graph mwith high intensity LED.
  • 0 - 9 sensitivity levels.
  • LOW Battery indication.
  • Dual mode operation – rechargeable & dry cells.
  • Continuous operation – 100hrs.
  • Separate LED indicator for ferrite detection.




Search coil made of flexible cable of 200cm* 80cm housed in telescopic extendable PVC pipe frame quick release clip lever type clutch locking system is contained in a canvas carrying case. The pipes can be joined together to from a doorway. The control unit contained in briefcase . Wooden ramp/protection for search cable,two side wooden legs alongwith PVC pipe frame in canvas bag. The entire unit can be assembled within 5 minutes to form qa workable door frame metal detectoe even on metalled road or pacca concrete floor. It can even be installed on any floor of multistoried buildings. Doorway is made out of PVC pipe with a thickness 3.5mm,diameter 63mm, 50mm impact strength 10kg/cm2. The elbow and socket is made out of unbreakable – toughned nylon glass filled plastic with Following sizes : Socket – Thickness 5mm length – 100mm, Elbow-5mm.


TECHNICAL SPECIFICATIONS
Dimension Search Coil – 200cm* 80cm Approx. Control unit in brief case.
Power Works on 230V AC+/-15% 50Hz& Automatic changeover to two no. of rechargeable 6V 4.5mAh battery in case of power failure & works continuously for 100 Hrs. In fullycharged condition. The Door Frame Metal Detector is also heaving four dry cells for 10Hrs. continuous operation whenever power Supply is OFF & Rechargeable batteries are fully consumed.
Detection Detects Ferrous, non -ferrous metals and their alloys, ferrite rods & All metals concealed in ferrite rods (in all six possible orientations) on a person al all speeds i.e Al slow speed and when thrown form one side to the other side.
Sensitivity Pre programmed Nine sensitivity levels which can be selected by a single selector switch with Low, Optimum, High security levels
Indication Led bar graph for size of metals. Three LEDs indicator. Separate LED inductor for ferrite detection.
Audio Alarm Three tone Indication for different size of metal with three distinct coloured LED indicator and Fourth tone for Ferrite Detection with LED indicator.
Operating temp -30`C to 55`C.
Counter Six digit counter for automatic counting. It Indicates, Number of persons going IN, OUT & NET IN.
Infra Red Sensor Infra Red Sensor is provided to avoid alarm indication for ,metal movement outside the frame
